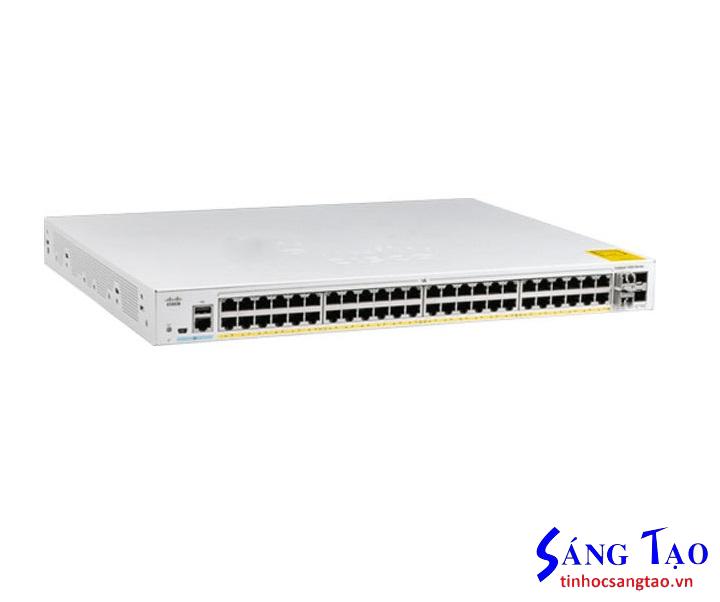

SWITCH CISCO C1000-48T-4G-L

Trang Chủ / THIẾT BỊ MẠNG / HUB / SWITCH / SWITCH CISCO

Bán hàng online:

Kỹ Thuật: 0798 324 324

Kinh doanh: 0896 488 339

SWITCH CISCO C1000-48T-4G-L

Đánh giá:

| Tình trạng: Còn hàng | Lượt xem: 2169

SWITCH CISCO C1000-48T-4G-L
- C1000-48T-4G-L – Cisco Catalyst 1000 Series Switches, 48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks

- Đầy đủ CO, CQ

Bảo hành:

Giá bán(đã bao gồm VAT): Liên Hệ

Số lượng:

Mua ngay

Thêm vào giỏ

Yên tâm mua sắm tại Sáng Tạo

37/4 TRẦN ĐÌNH XU, P.CẦU KHO, Q1

(KHÔNG CHI NHÁNH)

100% sản phẩm chính hãng

Giá cạnh tranh nhất thị trường

Giao hàng miễn phí 3km

Giá lẻ = Giá sỉ

TƯ VẤN BÁN HÀNG

Hotline: 093.848.6646 - 0896.488.339 - 0909205482

Ms.Dương :0909205482

Ms.Mai : 0896.488.339

Ms.Mai : 093.848.6646

Ms.Thanh : 0976.518.679

Ms.Dương : 0913713339

CSKH : 028.6657.1397

Email : dathang.sangtao@gmail.com

HỖ TRỢ KỸ THUẬT

IT : 0937.399.854

IT : 0798.324.324

IT : 0856.329.359

IT : 0909.284.074

HỖ TRỢ BẢO HÀNH

CSKH : 028.6657.1397

CSKH : 0798.324.324

liên hệ cửa hàng

TỪ KHÓA:

Thông số kỹ thuật

SWITCH CISCO C1000-48T-4G-L

C1000-48T-4G-L Specification
Description	48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks
Gigabit Ethernet ports	48
Uplink interfaces	4 SFP
PoE+power budget	\
Fanless	N
Dimensions (WxDxH in inches)	17.5 x 10.73 x 1.73
Console ports
RJ-45 Ethernet	1
USB mini-B	1
USB-A port for storage and Bluetooth console	1
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	52 Gbps
Switching bandwidth	104 Gbps
Forwarding rate(64—byte L3 packets)	77.38 Mpps
Unicast MAC addresses	16000
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 static routes	16
IPv6 static routes	16
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	600
IPv6 security ACEs	600
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Dying Gasp	Yes
MTBF in hours (data)	1,452,667
MTBF in hours (PoE)	856,329
MTBF in hours (Full PoE)	856,329
Environmental
Operating temperature Seal level	-5 to 50 deg C*
Up to 5,000ft (1500 m)	-5 to 45 deg C
Upto 10,000 (3000 m)	-5 to 40 deg C
Operating altitude	10,000 ft (3,000m)
Operating relative humidity	5% to 90% at 40C
Storage temperature	-13 to 158F (-25 to 70C)
Storage altitude	15,000 ft (4500m)
Storage relative humidit	5% to 95% at 65C
*Note: 50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F)
Safety and compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: Emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	TBD
Connectors and interfaces
Ethernet interfaces	* 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling * 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs	* Per-port status: link integrity, disabled, activity * System status: system
Console cables	* CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 * CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power	* Use the supplied AC power cord to connect the AC power connector to an AC power outlet * Models have external power supply
